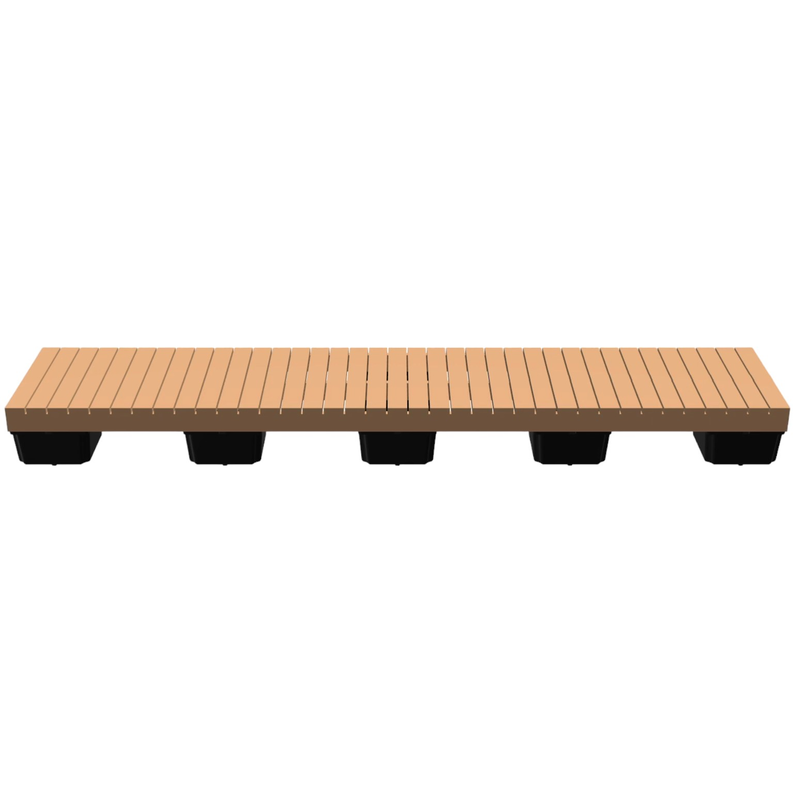

Dock Edge 4FT X 20FT Dock2Go DIY Floating Dock Kit

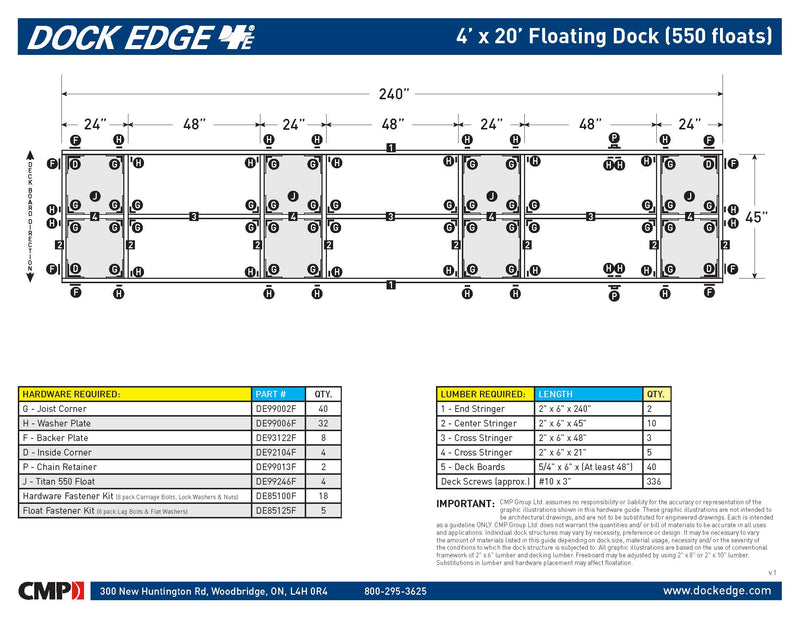

The Dock-2-Go PLUS Modular Dock Kit includes all heavy-duty, hot dip galvanized mounting hardware and floatation you need required to assemble a 4' x 20' (1.2m x 6.1m) modular floating dock. Each kit may be utilized to construct a stand-alone dock or may be attached to another Each kit may be utilized to construct a stand-alone dock or may be attached to another Dock 2 Go section using a Dock 2 Go modular connector kit (DE85205F) to increase dock length or width as required.

Kit Includes:

• 8 x backer plates DE93122F
• 4 x inside corners DE92104F
• 52 x joist corners DE99002F
• 40 x washer plates DE99006F
• 2 x chain retainers DE99013F
• 5 x Howell 400 floats DE99242F
• 23 x hardware fastener kit DE85100F
• 4 x float fastener kit DE85125F

Lumber & Screws Required:

Recommended Tools:

• Mitre saw or table saw
• Drill or impact driver
• Tape measure
• Adjustable wrench
• Socket set 1/2"
• Wood drill bit 5/8"
• Drill bit for lag bolt 1/2"
• Pilot Screws for framing

Resources:

Floating Dock Assembly Guide 4FT X 20FT

Instructional Video

Helpful Tips Video
