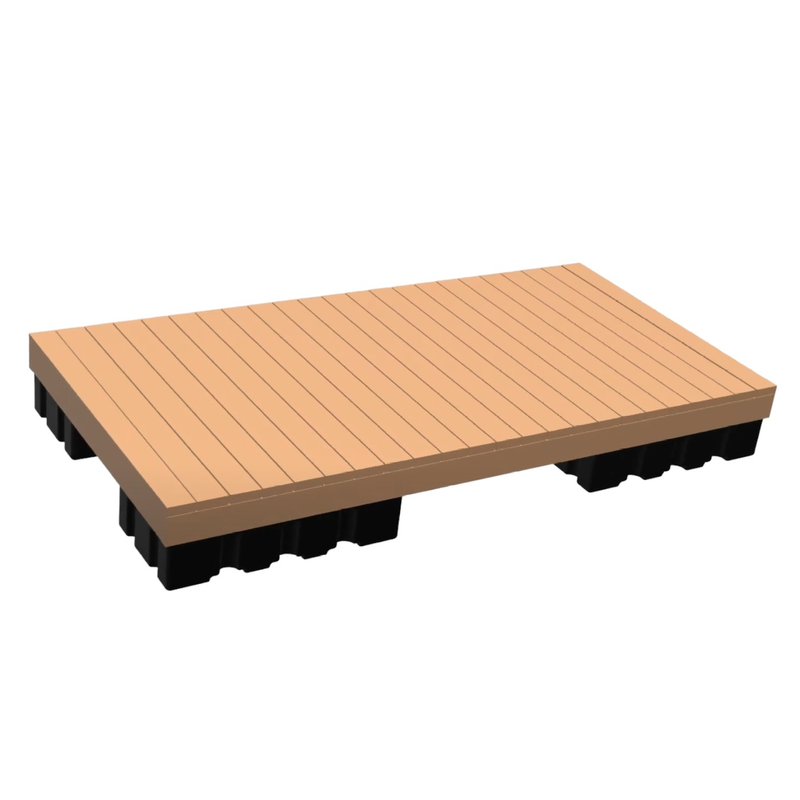

Dock Edge 6FT X 12FT Dock2Go DIY Floating Dock Kit

The Dock Edge+ Dock 2 Go Modular Dock Kit includes all heavy duty hot dipped galvanized mounting hardware required to assemble a 6' x 12' modular floating dock section. Each kit may be utilized to construct a stand-alone dock or may be attached to another Dock 2 Go section using a Dock 2 Go modular connector kit (DE85205F) to increase dock length or width as required.

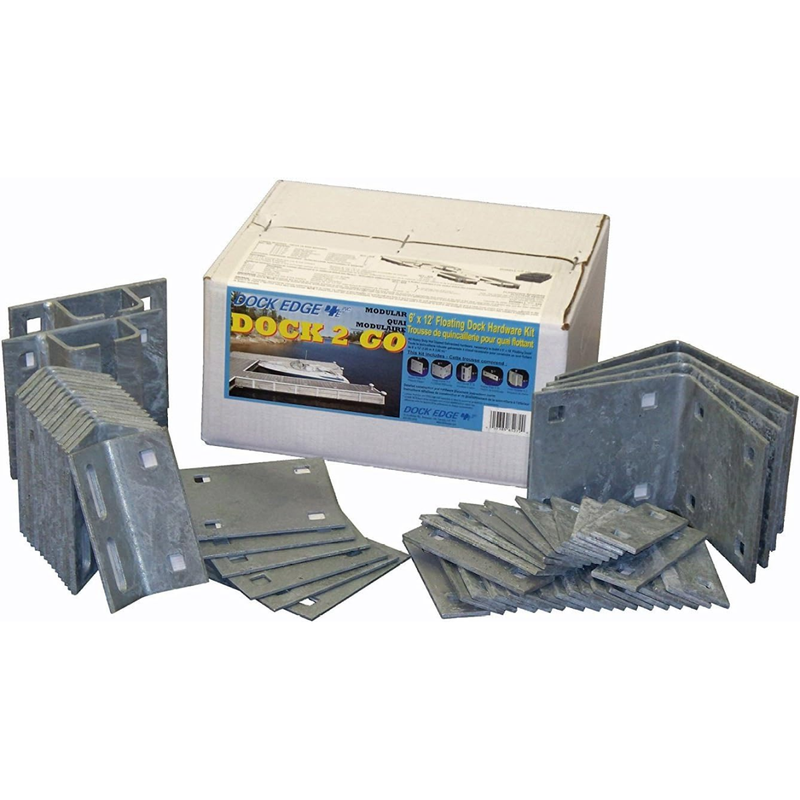

Kit Includes:

• 8 x backer plates DE93122F
• 4 x inside corners DE92104F
• 2 x chain retainers DE99013F
• 12 x joist corners DE99002F
• 28 x washer plates DE99006F

Please note: Floats x 4 DE99246F, hardware fastener kits x 11 DE85100F & float fastener kit x 5 DE85125F are not included in this kit order separately.

Lumber & Screws Required:

Recommended Tools

• Mitre saw or Table Saw
• Drill or impact driver
• Tape measure
• Adjustable wrench
• Socket set 1/2"
• Wood drill bit 5/8"
• Drill bit for lag bolt 1/2"
• Pilot screws for framing

Resources:

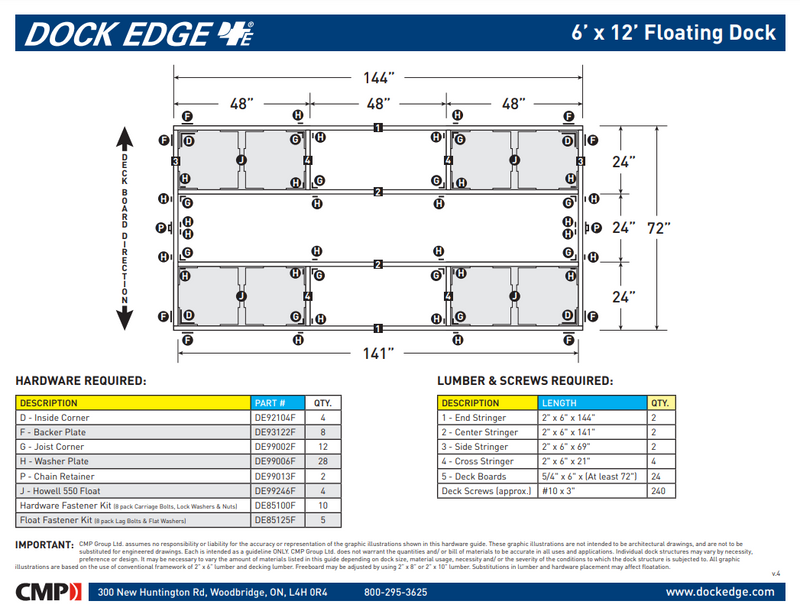

Floating Dock Assembly Guide 6FT X 12 FT

Instructional Video

Helpful Tips Video
