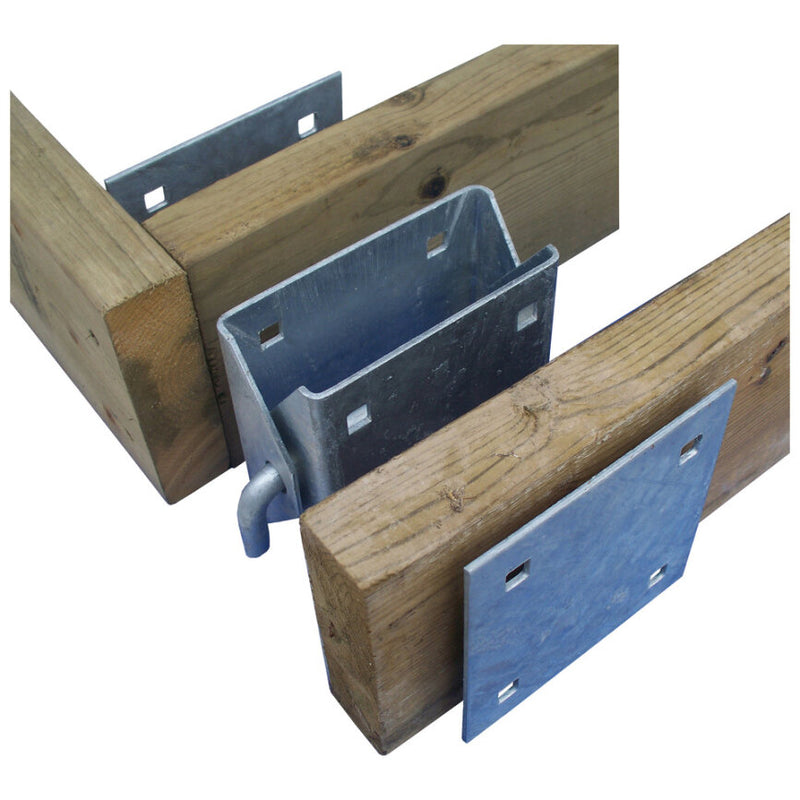

Dock Edge Stationary Dock Connector Hinge Kit DE85220F

This stationary connector hinge kit includes 2 heavy duty connector hinges and 4 backer plates. Use for all dock and ramp connections. Hardware is 1/8” nominal hot dipped galvanized steel with 7/16" holes for 3/8” bolts. Kit includes all hardware, bolts not included.

• 2 heavy duty connector hinges 5" x 5" x 1/8"
• 4 Back plates: 5" x 5" x 1/8"
• Instruction plan is included
• For stationary dock

Requires 16 x 2-1/2" x 3/8" carriage bolts, lock washer and nuts for installation. (not included with kit)
