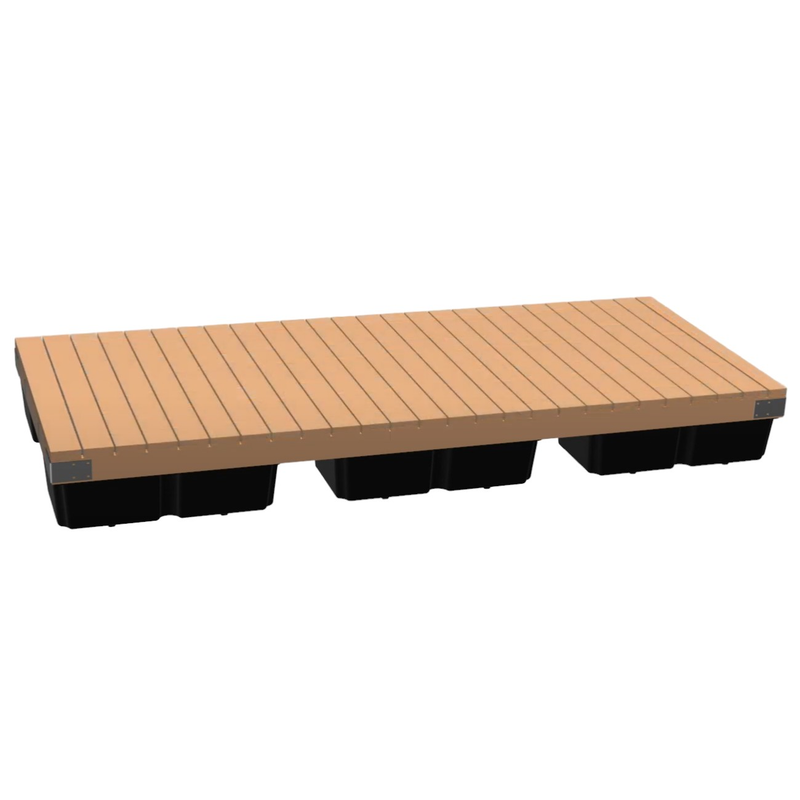

Dock Edge 6FT X 16FT Dock2Go DIY Floating Dock Kit

The Dock-2-Go PLUS Modular Dock Kit includes all heavy-duty, hot dip galvanized mounting hardware and floatation you need required to assemble a 6' x 16' (1.8m x 4.9m) modular floating dock. Each kit may be utilized to construct a stand-alone dock or may be attached to another Dock 2 Go section using a Dock 2 Go modular connector kit (DE85205F) to increase dock length or width as required.

Kit Includes:

• 8 x backer plates DE93122F
• 4 x inside corners DE92104F

• 8 x joist corners DE99002F
• 20 x washer plates DE99006F
• 2 x chain retainers DE99013F
• 6 x Howell 400 floats DE99242F OR 5 X Howell 550 floats DE99246F
• 9 x hardware fastener kit DE85100F
• 5 x float fastener kit DE85125F

Lumber & Screws Required:

Recommended Tools:

• Mitre saw or table saw
• Drill or impact driver
• Tape measure
• Adjustable wrench
• Socket set 1/2"
• Wood drill bit 5/8"
• Drill bit for lag bolt 1/2"
• Pilot Screws for framing

Resources:

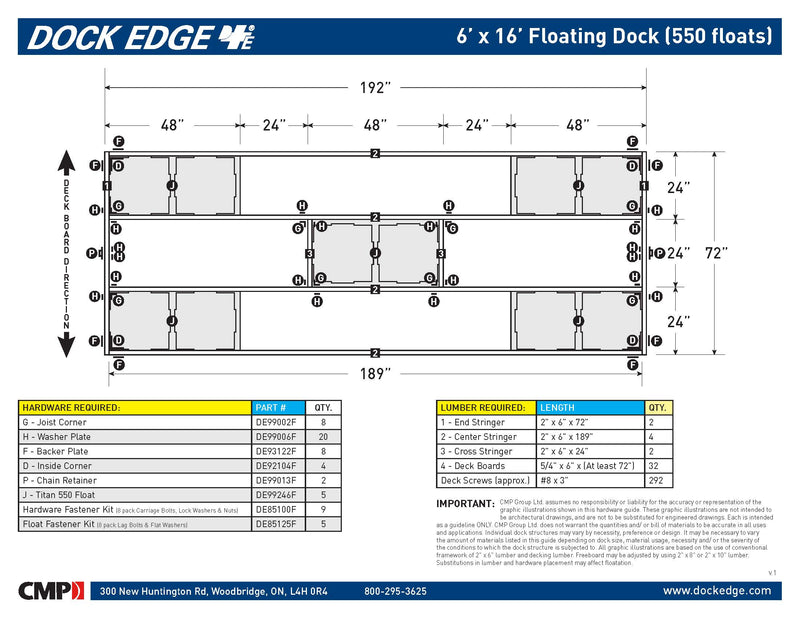

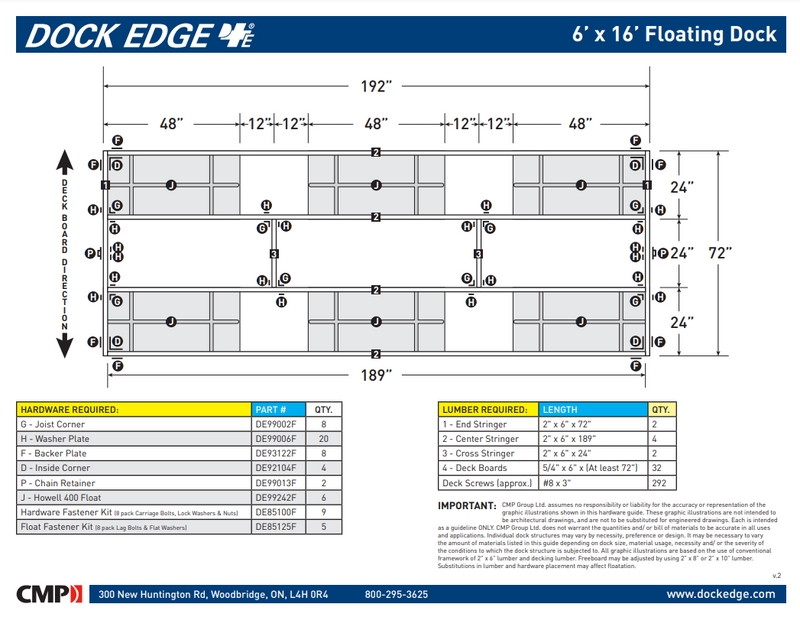

Floating Dock Assembly Guide 6FT X 16 FT

Instructional Video

Helpful Tips Video
